Stone crushing plant is primarily involved in the manufacture of aggregates (coarse aggregates, crusher run, rock sand, fine aggregates) from limestone, granite, andesite, etc. Coarse aggregates are usually used in ready mix concrete and asphaltic concrete. Crusher run is used for the bases and sub-bases for road making. Fine aggregates are used for the production of concrete and plastering.

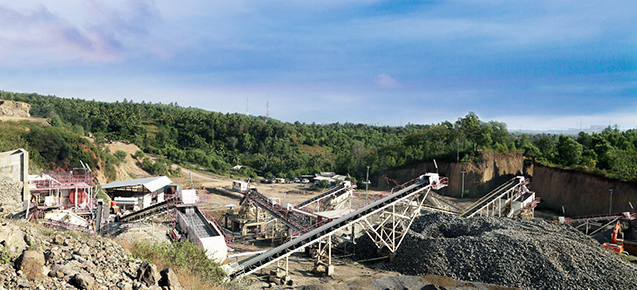

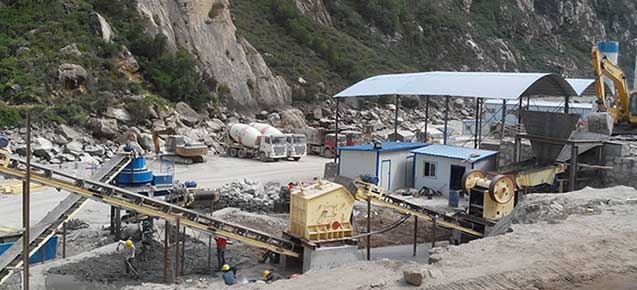

The stone crusher plant is generally composed of vibrating feeder, crushing machines, vibrating screen, belt conveyor and other equipment. The complete crushed stone production plant is generally divided into coarse (primary), secondary and fine crushing according to its output fineness. The final size is 0-6mm(0-1/4’’), 6-12mm(1/4’’-1/2’’), 12-25mm( 1/2’’-1’’)(or other sizes according to your need) as aggregate for construction. It is suitable for application in hydropower, highway and urban construction, etc.
As a professional stone crusher plant equipment manufacturer, MGM Machinery insists on providing customers with high yield, energy-saving and environmental protection rock crushers and other machines. We can customize stone crusher plants for customers, including stone crusher plant layout, stone crusher plant machines and stone crusher plant estimated cost.
| Equipment configuration | Hopper(made on site), vibrating feeder ZSW960x3800, jaw crusher PE600x900, cone crusher HPC200/CS110 or impact crusher PF1214, vibrating screen, belt conveyor. |
| Raw materials | Limestone, Granite, Basalt, Quartz, River stone etc. |
| Feed Size | less than 500mm |
| Capacity | 100-150t/h |
| Finished product | 0-6mm, 6-12mm, 12-25mm, 25-40mm |
| Application | produce aggregate of limestone, granite, basalt, river stone, marble, iron ore, dolomite, quartz, slag etc, which is widely applied for hydropower, construction, highway, railway, airport runway, civil engineering projects and etc. |
| Features | 1. High degree of automatic operation. The whole crushing plant requires sevral workers for machine starting and stopping, routine maintenance.2. High production efficiency, regular end product granularity, good grain shape, and low powder content.3. Adopting high advanced control system to ensure security and reliable operation of the entire stone crushing plant. |

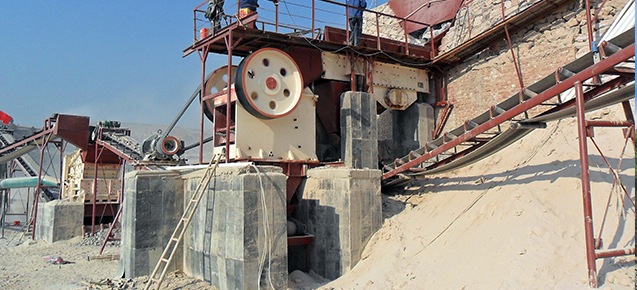

1. Raw material dump into the hopper by loader forklift, then feed into jaw crusher evenly and continuously by vibrating feeder for primary crushing.

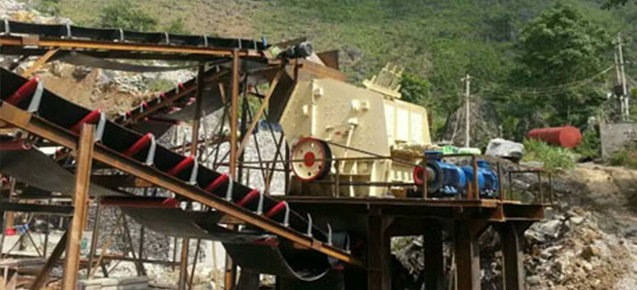

2. Then the coarsely crushed materials are conveyed to secondary crusher (according to material hardness and output sizes request),secondary crusher can choose impact crusher, CS cone crusher, HP multi cylinders cone crusher and DG single cylinder cone crusher.
3. The final crushed material goes to vibrating screen to classify final qualified products according to different size ranges as stock pile forsale, or for road builidng use. Unqualified materials will be carried back to the stone crushing equipment for recrushing.
4. Customer can classify final products according to different size ranges. All the final products are up to the related standards within and beyond China. Dust is generated during the working process while the dust control units are needed.
