Stone crushing plant is primarily involved in the manufacture of aggregates (coarse aggregates, crusher run, rock sand, fine aggregates) from limestone, granite, andesite, etc. Coarse aggregates are usually used in ready mix concrete and asphaltic concrete. Crusher run is used for the bases and sub-bases for road making. Fine aggregates are used for the production of concrete and plastering.

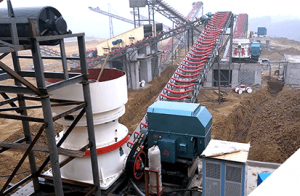

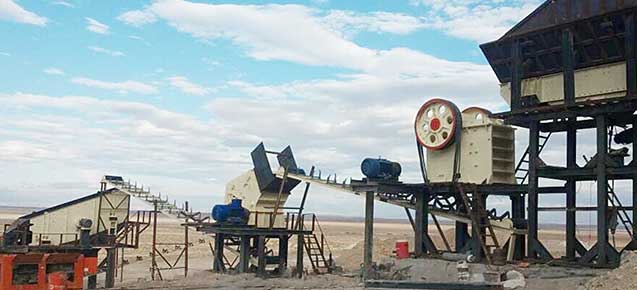

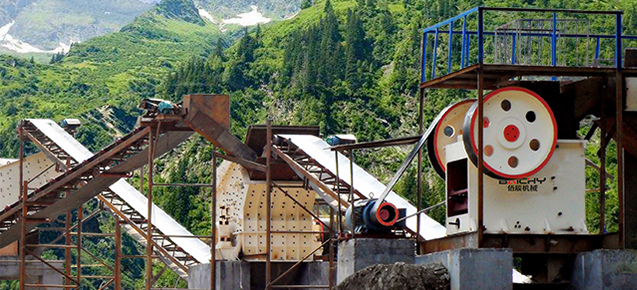

The stone crusher plant is generally composed of vibrating feeder, crushing machines, vibrating screen, belt conveyor and other equipment.The complete crushed stone production plant is generally divided into coarse (primary), secondary and fine crushing according to its output fineness. The final size is 0-6mm(0-1/4’’), 6-12mm(1/4’’-1/2’’), 12-25mm( 1/2’’-1’’)(or other sizes according to your need) as aggregate for construction. It is suitable for application in hydropower, highway and urban construction, etc.
MGM machinery has 20+ years of experience in the stone crushing production plant. We are skilled in the production plant design and has a high-cost performance. MGM’s stone crusher plant and stone crushing equipment have been sold to hundreds of countries, such as Indonesia, Philippines, Vietnam, Malaysia, India, Pakistan, Kenya, the USA, Ghana, Zimbabwe, America, Australia Canada, Peru, Columbia, Guatemala, Uzbekistan, Russia etc.

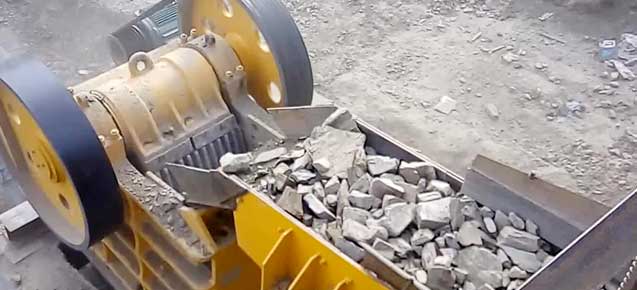

1. Raw stone in medium or lower hardness is fed into jaw crusher through vibrating feeder. Vibrating feeder with grate bars is optional to separate stone debris or soil in advance.
2. After primary jaw crusher, the material will go to impact crusher machine for secondary crushing by belt conveyor.
3. The final crushed material goes to vibrating screen to classify final qualified products according to different size ranges such as 0-5mm, 5-10mm, 10-20mm, 20-40mm as stock pile forsale, or for road builidng use. Unqualified materials will be carried back to the stone crushing equipment for recrushing.
4. Customer can classify final products according to different size ranges. All the final products are up to the related standards within and beyond China. Dust is generated during the working process while the dust control units are needed.
