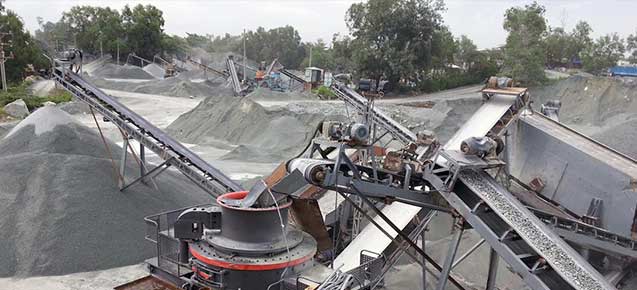

Stone crusher plant is mainly for large lump stones crushing and breaking into smaller size and produce aggregates, gravels and sand. The final size is 0-6mm(0-1/4’’), 6-12mm(1/4’’-1/2’’), 12-25mm( 1/2’’-1’’)(or other sizes according to your need) as aggregate for construction. It is used to crush limestone, granite, basalt, river stone, andesite calcite, gold ore, glass, and ferrous material used for the crushing purpose.

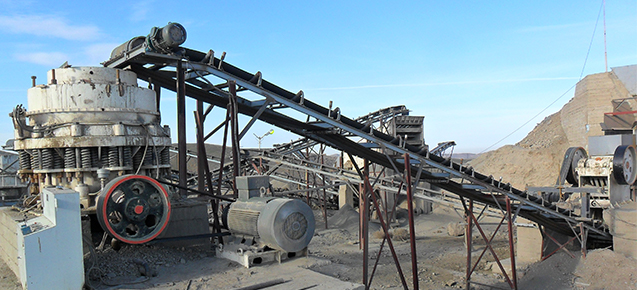

The main equipment consist of primary jaw crusher , secondary and tertiary crusher, such as impact crusher, cone crusher, rotor crusher, and vibrating screen, belt conveyor, electrical control system. The main important part of limestone crusher plant is crusher machine. Other equipment are chosen depending on that. All the other supported equipment will be fitted according to the crusher plant capacity.
As a professional stone crusher plant equipment manufacturer, MGM Machinery insists on providing customers with high yield, energy-saving and environmental protection rock crushers and other machines. We can customize stone crusher plants for customers, including stone crusher plant layout, stone crusher plant machines and stone crusher plant estimated cost.
| Equipment configuration | Hopper, vibrating feeder ZSW1100x4200, jaw crusher PE750x1060, cone crusher HPC300/CS220 or impact crusher PF1320, vibrating screen, belt conveyor. |
| Raw materials | Limestone, Granite, Basalt, Quartz, River stone etc. |
| Feed Size | less than 630mm |
| Capacity | 180-220t/h |
| Finished product | 0-6mm, 6-12mm, 12-25mm, 25-40mm |
| Application | Produce aggregate of limestone, granite, basalt, river stone, marble, iron ore, dolomite, quartz, slag etc, which is widely applied for hydropower, construction, highway, railway, airport runway, civil engineering projects and etc. |
| Features | 1. Low operating cost and high crushing rate;2. Energy saving, large output and simple maintenance, in line with the national building sand standards;3. Uniform particle size of finished products, reasonable configuration. |

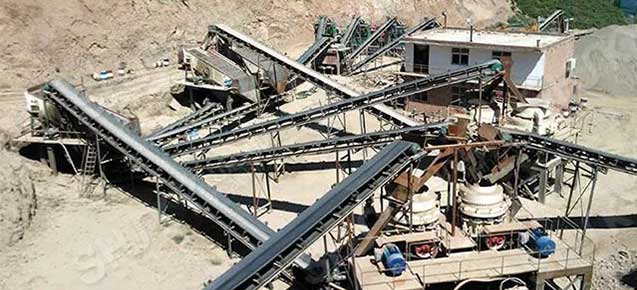

1. Raw material dump into the hopper by loader forklift, then feed into jaw crusher evenly and continuously by vibrating feeder for primary crushing.
2. Then the coarsely crushed materials are conveyed to secondary crusher (according to material hardness and output sizes request),secondary crusher can choose impact crusher, CS cone crusher, HP multi cylinders cone crusher and DG single cylinder cone crusher.
3. The final crushed material goes to vibrating screen to classify final qualified products according to different size ranges as stock pile forsale, or for road builidng use. Unqualified materials will be carried back to the stone crushing equipment for recrushing.
4. Customer can classify final products according to different size ranges. All the final products are up to the related standards within and beyond China. Dust is generated during the working process while the dust control units are needed.
