Stone crushing plant is primarily involved in the manufacture of aggregates (coarse aggregates, crusher run, rock sand, fine aggregates) from limestone, granite, andesite,etc. Coarse aggregates are usually used in ready mix concrete and asphaltic concrete. Crusher run is used for the bases and sub-bases for road making. Fine aggregates are used for the production of concrete and plastering.

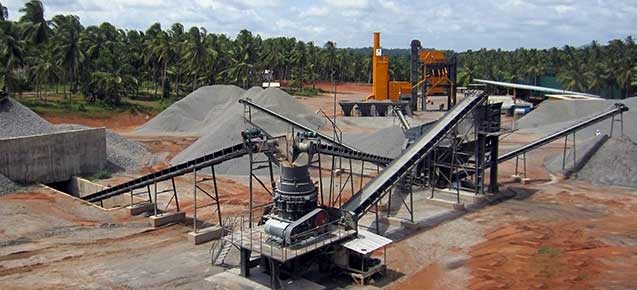

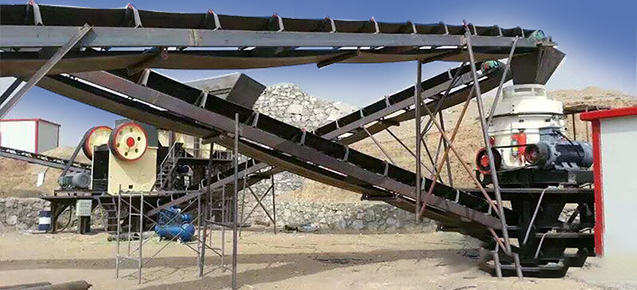

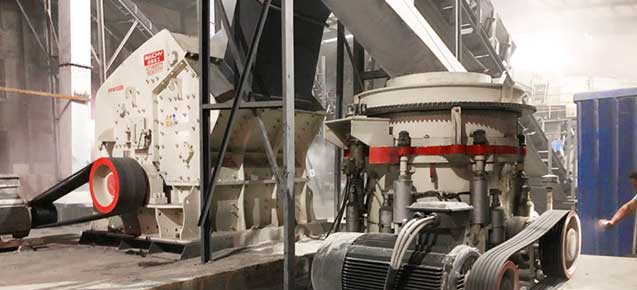

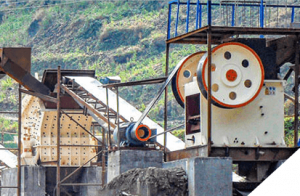

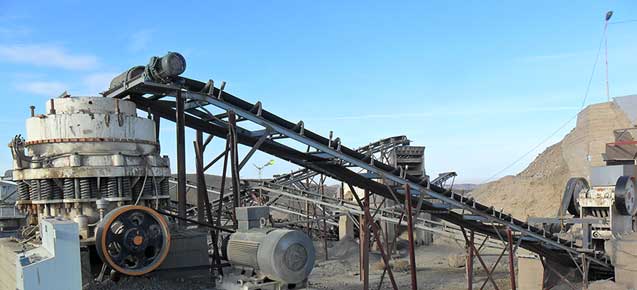

The stone crusher plant is generally composed of vibrating feeder, crushing machines, vibrating screen, belt conveyor and other equipment. The complete crushed stone production plant is generally divided into coarse (primary), secondary and fine crushing according to its output fineness. The final size is 0-6mm(0-1/4’’), 6-12mm(1/4’’-1/2’’), 12-25mm( 1/2’’-1’’)(or other sizes according to your need) as aggregate for construction. It is suitable for application in hydropower, highway and urban construction, etc.
MGM machinery , with 20+ years of experience in the stone crushing production line, is skilled in the production plant design with a high-cost performance. MGM’s stone crusher plant and stone crushing equipment have been sold to hundreds of countries, such as Indonesia, Philippines, Vietnam, Malaysia, India, Pakistan, Kenya, the USA, Ghana, Zimbabwe, America, Australia Canada, Peru, Columbia, Guatemala, Uzbekistan, Russia etc.
| Equipment configuration | Hopper, vibrating feeder ZSW850x3000, jaw crusher PE500x750, cone crusher PYB900, vibrating screen YK series, belt conveyor. |
| Raw materials | Crush and screen limestone, marble, granite, basalt, river gravel and other hard stone materials. |
| Feed Size | less than 425mm |
| Capacity | 80-100t/h |
| Finished product | 0-5mm, 5-10mm, 10-20mm, 20-40mm |
| Application | Produce sand & gravels with various granularities of limestone, granite, basalt, river stone, marble, iron ore, dolomite, quartz, slag etc, which is widely applied for hydropower, construction, highway, railway, airport runway, civil engineering projects and etc. |
| Features | 1. High degree of automatic operation. The whole crushing plant requires sevral workers for machine starting and stopping, routine maintenance.2. High production efficiency, regular end product granularity, good grain shape, and low powder content.3. Adopting high advanced control system to ensure security and reliable operation of the entire stone crushing plant. |
