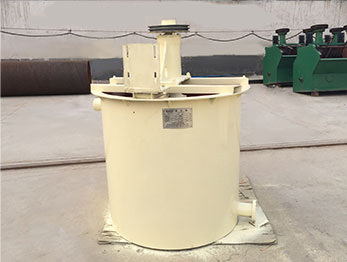

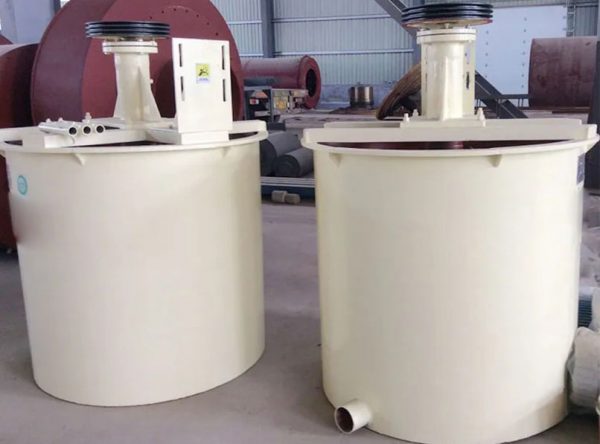

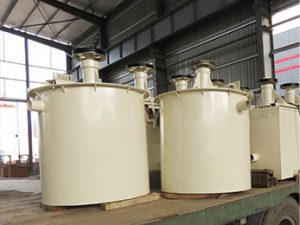

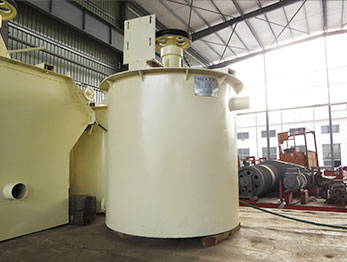

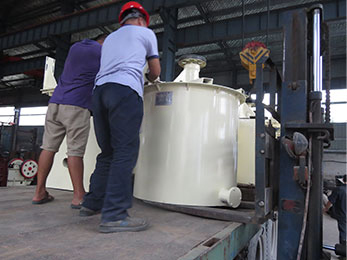

Agitator

Agitator is the indispensable equipment to fully mix the reagent and the ore pulp, increase the reaction time of the reagent and strengthen the quality of the reagent reaction.

  • Feed Size: Impeller diameter:200-850mm
  • Motor Power: 1.1-18.5KW
  • Processing capacity : 0.098-30m³

Agitator is the indispensable equipment to fully mix the reagent and the ore pulp, increase the reaction time of the reagent and strengthen the quality of the reagent reaction.

  • Feed Size: Impeller diameter:200-850mm
  • Motor Power: 1.1-18.5KW
  • Processing capacity : 0.098-30m³

What is agitator or mixer?

The mining agitator, also called mixer,  is a kind of agitating equipment used for ore pulp agitation before flotation operation, so that ore pulp and reagent are fully mixed. It can also be used for stirring other non-metallic minerals. Mixing barrels are very common in metal and non-metal beneficiation, such as flotation beneficiation, hydrometallurgy, rare and precious metal leaching and extraction, and are also used in many sewage treatment and production of some chemical raw materials.

How to choose mining agitator?

There are five main functions of the mining mixing tank

1.Mixing two or more liquids evenly

2.Disperse two or more incompatible liquids evenly to obtain an emulsion

3.To dissolve certain gases in the liquid,4.

4.Disperse the solid particles evenly in the liquid

5.Accelerate the chemical reaction in the slurry.

According to the function and characteristics of the mixing tank, choose a suitable agitator machine reasonably to improve the flotation efficiency of minerals.

Product features

The impeller is the designed into a pileus type

  • High Quality

    Simple structure, easy adjustment.

  • Customized Design

    Reliable operation and easy maintenance.

  • Good Performance

    High efficient, less power consumption.

Working principle

Agitation tank adopts barrel shaped radiation circular spiral impeller for mixing operation by mechanical stirring method. The motor drives V- belt transmission device which drives the impeller. Reagents mix evenly under the rotation of impeller preparing for next step that mix the ore slurry and reagents. Agitation tank for chemical reagent is used for reagents preparation before floatation.

Specification

Model Internal diameter(mm) Internal Height(mm) Volume(m3) Impeller speed(r/min) Impeller diameter(mm) Motor power Dimension (LxWxH) (mm)
Model Power(KW)
XB-500 500 500 0.098 600 200 Y90S-6 1.1 600×566×954
XB-750 750 750 0.33 530 255 Y90L-4 1.5 1131×880×1241
XB-1000 1000 1000 0.58 350 240 Y90L-4 1.5 1131×1130×1492
XB-1200 1200 1200 1.18 320 400 Y132S-6 2.2 1500×1480×1800
XB-1500 1500 1500 2.2 320 400 Y132S-6 3 1750×1640×2190
XB-2000 2000 2000 4.4 240 550 Y132M2-6 5.5 2380×2162×2850
XB-2500 2500 2000 9.2 272 650 Y160L-6 11 3036×2716×3543
XB-3000 3000 3000 19.1 220 700 Y225S-8 18.5 3604×3216×4250
XB-3500 3500 3500 30 183 850 Y225M-8 30 3940×3766×5386

*The output will vary according to different materials, feed particle size and other factors
