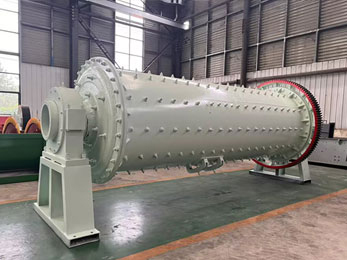

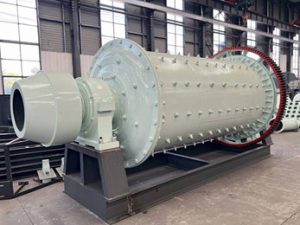

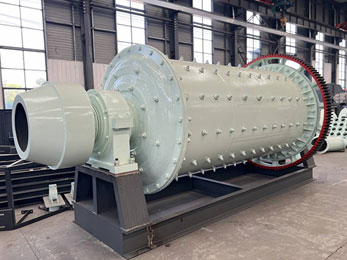

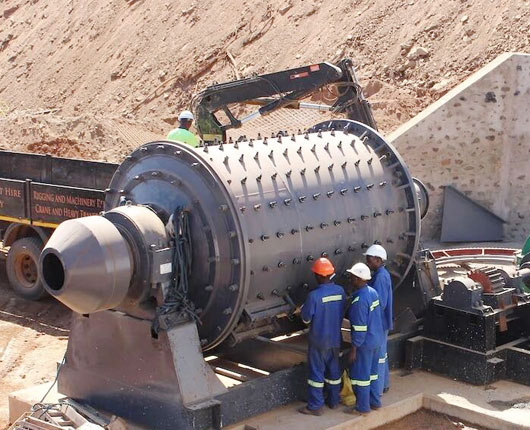

Ball mill, also called grinding mill, ball grinding mill, is the key equipment to grind crushed materials into fine powder 20-75 micrometer. It has grate type and overflow type.
Ball mill, also called grinding mill, ball grinding mill, is the key equipment to grind crushed materials into fine powder 20-75 micrometer. It has grate type and overflow type.
Selecting the types of ball mill is mainly up to capacity. There are many factors that are related to the processing capacity of ball mill, such mineral characteristic, feeding particle size and final size, shape of the lining board, mill speed, medium charge ratio, slurry concentration, as well as the type of classifier and working system etc.
1. Cylinder shape. Short-cylinder with single-bin structure ball mill is mainly used for coarse grinding or primary grinding with high efficiency. The specific configuration of the ball mill should according to the output and working conditions.
Discharge method
2. Discharge type. Overflow type: discharge ore through the hollow shaft. When the ore discharge surface is higher than the slurry surface, the finished product is discharged and the ore is automatically discharged by gravity, thus the overflow ball mill saves energy.
Grate discharge ball mill: the ore is discharged through the grate plate. The grating part can strictly control the minerals’ discharge size that meets the demand, it has a good effect on fine particle grinding.

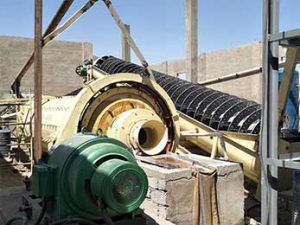

3. Transmission method. Central transmission ball mill: The driving power of this type of mill is in the center of the fuselage, and the motor realizes the operation of the ball mill through a reducer. During operation, the hollow shaft in the center of the ball mill drives the grinding body to rotate under the drive of the power system.
Edge transmission ball mill: The motor drives the gear on the edge of the barrel through the reducer to drive the barrel.
4. Energy consumption. Choose an energy-saving ball mill or ordinary ball mill according to the capacity of electric power supply and energy consumption limitation.
High processing capacity,obvious continuous operation advantages.
Ball mill is mainly composed of feeding part, discharging part, turning part and driving part. Convenient installation and debugging , easy to operate.
High manganese steel plate liner is more wear-resistant and has a longer service life. Groove-type lining plate to grinding action and ore lifting capacity and decreases energy consumption.
ball mill adopts rolling bearing support instead of sliding bearing support with bearing bush to save energy by 10-20%.
Ball mill grinding machine is a kind of horizontal drum-type grinding mill with external gear and double bins. Materials goes evenly through quill shaft in feeding device into the first bin, which has ladder lining or ripple lining with steel balls in different specifications.Steel balls are taken to a certain height by centrifugal force from drum rotation and then fall. Thus it will give a heavy blow to materials, playing a role of grinding. Materials after crushed in the first bin shall enter bin across single-layer diaphragm into the second, which is provided with flat lining with steel balls, to go through further grinding. The ground materials are discharged through the discharging board thus the grinding process is finished.
| Model | Cylinder Rotating Speed (r/min) |
Ball weight (t) |
Feeding Size (mm) |
Discharging Size (mm) |
Capacity (t/h) |
Power (kw) |
| Ф900×1800 | 36-38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 |
| Ф900×3000 | 36 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 |
| Ф1200×2400 | 36 | 3 | ≤25 | 0.075-0.6 | 1.5-4.8 | 30 |
| Ф1200×3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 |
| Ф1200×4500 | 32.4 | 5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 |
| Ф1500×3000 | 29.7 | 7.5 | ≤25 | 0.074-0.4 | 2-5 | 75 |
| Ф1500×4500 | 27 | 11 | ≤25 | 0.074-0.4 | 3-6 | 110 |
| Ф1500×5700 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 130 |
| Ф1830×3000 | 25.4 | 11 | ≤25 | 0.074-0.4 | 4-10 | 130 |
| Ф1830×4500 | 25.4 | 15 | ≤25 | 0.074-0.4 | 4.5-12 | 155 |
| Ф1830×6400 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 210 |
| Ф1830×7000 | 24.1 | 23 | ≤25 | 0.074-0.4 | 7.5-17 | 245 |

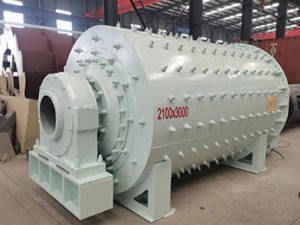

| Ф2100×3000 | 23.7 | 15 | ≤25 | 0.074-0.4 | 6.5-36 | 155 |
| Ф2100×4500 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8-43 | 245 |
| Ф2100×7000 | 23.7 | 26 | ≤25 | 0.074-0.4 | 12-48 | 280 |
| Ф2200×4500 | 21.5 | 27 | ≤25 | 0.074-0.4 | 9-45 | 280 |
| Ф2200×6500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 |
| Ф2200×7000 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 |
| Ф2200×7500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-30 | 380 |
| Ф2400×3000 | 21 | 23 | ≤25 | 0.074-0.4 | 7-50 | 245 |
| Ф2400×4500 | 21 | 30 | ≤25 | 0.074-0.4 | 8.5-60 | 320 |
| Ф2700×4000 | 20.7 | 40 | ≤25 | 0.074-0.4 | 22-80 | 380 |
| Ф2700×4500 | 20.7 | 48 | ≤25 | 0.074-0.4 | 26-90 | 480 |
| Ф3200×4500 | 18 | 65 | ≤25 | 0.074-0.4 | TBC | 630 |
| Ф3600×4500 | 17 | 90 | ≤25 | 0.074-0.4 | TBC | 850 |
*The output will vary according to different materials, feed particle size and other factors
