In industry production belt conveyor act as connection between different equipment to realize the continuous and automatic production which can improve efficiency and reduce labor intensity.
In industry production belt conveyor act as connection between different equipment to realize the continuous and automatic production which can improve efficiency and reduce labor intensity.
1. The belt conveyor can transport variety of materials. It can not only transport various sand and gravel aggregates, sand coal and other bulk materials, but also transport various cartons, packaging bags and other light-weight goods. It has a wide range of uses.
2. Various structural forms, including trough belt conveyor, flat belt conveyor, climbing belt conveyor, etc., and accessories such as push plates, side baffles, and skirts can also be added to the conveyor belt. This could meet various requirements.
3. The conveying belt is made of various materials such as rubber, canvas, PVC, PU, etc. In addition to being used for conveying ordinary materials, it can also meet the conveying of materials with special requirements such as oil resistance, corrosion resistance, and anti-static.
4. The conveying is stable, and there is no relative movement between the material and the conveyor belt, which can avoid damage to the conveyed objects.

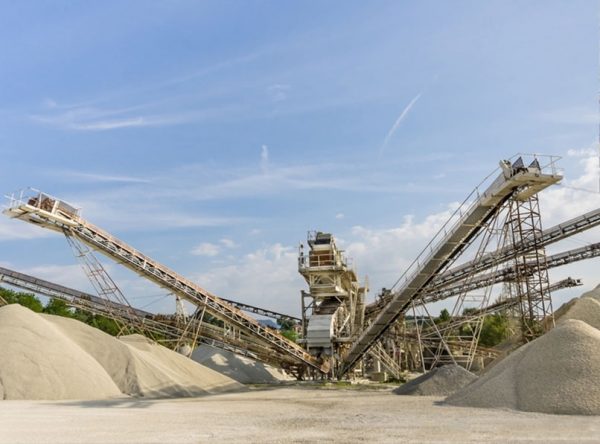

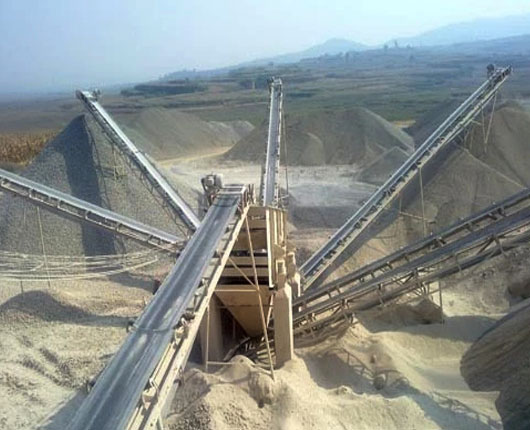

Belt conveyor can be used in all stone crushing production line. The hot-sale types are including: Belt Width 500mm, 650mm, 800mm, 1000mm, 1400mm etc.

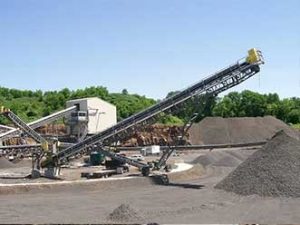

The conveying system could be made mobile conveyor, long conveyor, inclined conveyor, flat conveyor to meet different requirement.
The belt conveyor can be installed horizontally or slope to meet the needs of different conveying lines.
Belt conveyor can be operated in the circumstance temperature from -20 degree to +40 degree. The temperature of the transported materials should be lower than 50 degree.
Belt conveyor is a common means of transport used in mining enterprises. It uses the belt conveyance to draw and support components and transport materials by way of the moving belt.
Belt conveyor utilizes the inner friction and side pressure of loose material to increases the internal pressure from the pulling force in its moving direction produced by the rolling chamber in the adhesive chamber, thus increasing the internal friction. When inclination falls within certain scope, the inward friction force can ensure the stability between layers and create continuous movement. When the internal friction force between the layers is larger than the external force of the adhesive, the roller beneath the adhesive will move along with the material. When the ratio of internal force and external force meets a condition, the material flow is stable.
| Belt width (mm) | Conveying length (m) Power (kw) |
Conveying speed (m/s) | Conveying amount (t/h) | ||
| 500 | ≤ 12/3 | ≤ 12-20/4-5.5 | ≤ 20-30/5.5-7.5 | 1.3-1.6 | 40-100 |
| 650 | ≤ 12/4 | ≤ 12-20/5.5 | ≤ 20-30/7.5-11 | 1.3-1.6 | 80-120 |
| 800 | ≤ 10/4 | ≤ 10-15/5.5 | ≤ 15-30/7.5-15 | 1.3-1.6 | 120-200 |
| 1000 | ≤ 10/5.5 | ≤ 10-20/7.5-11 | ≤ 20-40/11-22 | 1.3-2.0 | 200-320 |
| 1200 | ≤ 10/7.5 | ≤ 10-20/11 | ≤ 20-40/15-30 | 1.3-2.0 | 300-500 |
*The output will vary according to different materials, feed particle size and other factors
