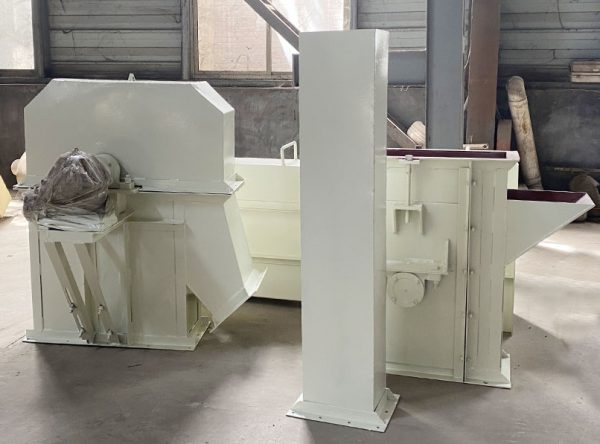

Bucket elevator is a straight conveying equipment for upward transporting power,small granular material.
Bucket elevator is a straight conveying equipment for upward transporting power,small granular material.
1. The floor area is small, the transmission speed can be adjusted according to the transmission volume, and the lifting height can be selected as needed.
2. Good sealing, less environmental pollution.
3. Easy to operate, less maintenance and less wearing parts; due to low energy consumption and less maintenance, the use cost is low.
Easy operation and maintenance, less wearing parts.
Big capacity ability.
Compact structure,good sealing and little environmental pollution.
Long service life, the transmission chain service life is morn than 5 years.
When the motor is switched on, the bucket mounted on bucket belt does circulating motion along the leg from the bottom up; materials enters the bucket and conveys to the head section of the elevator when filled, When the bucket belt turns around the head pulley, materials are ejected from the bucket under the action of centrifugal force and gravity. By such a repeated circle the materials in bottom are lifted to a given height and then discharged, so as to meet a requirement of vertical lifting.
| Model | 160 | 160 | 250 | 250 | 315 | 315 | 400 | 400 |
| Type of hopper | Q | H | Q | H | Q | H | Q | H |
| Capacity(m3/h) | 5.4 | 9.6 | 12 | 22 | 17 | 30 | 24 | 46 |
| Bucket width(mm) | 160 | 160 | 250 | 250 | 315 | 315 | 400 | 400 |
| Bucket volume(L) | 0.5 | 0.9 | 1.3 | 2.2 | 2 | 3.6 | 3.1 | 5.5 |
| Pitch of buckets(mm) | 280 | 280 | 360 | 360 | 400 | 400 | 480 | 480 |
| Belt width(mm) | 200 | 200 | 300 | 300 | 400 | 400 | 500 | 500 |
| Speed(m/s) | 1.4 | 1.4 | 1.6 | 1.6 | 1.6 | 1.6 | 1.8 | 1.8 |
*The output will vary according to different materials, feed particle size and other factors
