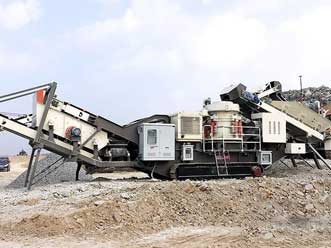

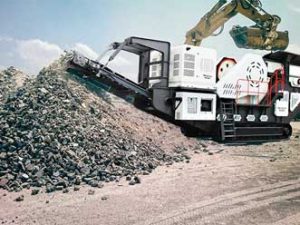

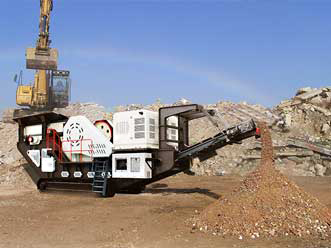

Crawler type mobile crusher is designed to be moved around constantly. It is more compact and less weight. Tracked stone crusher is used in mining, quarry, concrete crushing plant.
Crawler type mobile crusher is designed to be moved around constantly. It is more compact and less weight. Tracked stone crusher is used in mining, quarry, concrete crushing plant.
1. The crawler mobile crushing station can be divided into four series – cone crusher crawler mobile crushing station, jaw crusher crawler mobile crushing station, impact crusher crawler mobile crushing station, screening crawler mobile crushing station. According to stone hardness, site conditions, etc. Engineers from Baichy Machinery could suggest appropriate mobile crusher.
2. Crawler-type screening and crushing equipment products are light in weight, small in size, adopt all-wheel drive. It can realize in-situ steering, standard configuration, quick-change device, and have perfect safety protection functions, especially suitable for working in narrow places.
3. Compared with various fixed crushing stations, the mobile crushing station is like a small and medium-sized crushing plant that can be moved, and its long-term work efficiency and operating costs are better than fixed crushing stations of the same level or higher.
4. The best noise absorption system, compact and flexible equipment, can better meet the construction waste crushing operation between urban areas, effective dust removal system, suitable for diesel engine noise emission.
5. Crawler mobile station can be used for mining, coal mines, construction waste crushing, rock, ore, block road, old asphalt concrete and other materials crushing process.
It can work uphill to meet the crushing requirements of mining, hydropower station, coal mine and other projects.
Convenient transportation, crawler walking, no damage to the road, equipped with multi-functional accessories, Drived by oil and electricity.
The whole crushing plant adopts all-wheel drive to realize rotating direction in place, with perfect protection function, especially suitable for narrow and complex site.

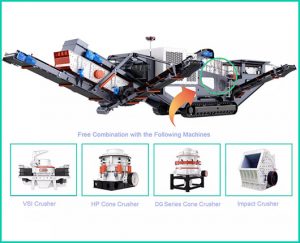

The crawler crushing plant could be optional for jaw crusher, impatct crusher, cone crusher, VSI crusher etc.

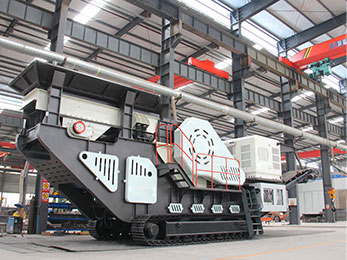

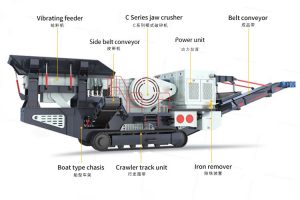

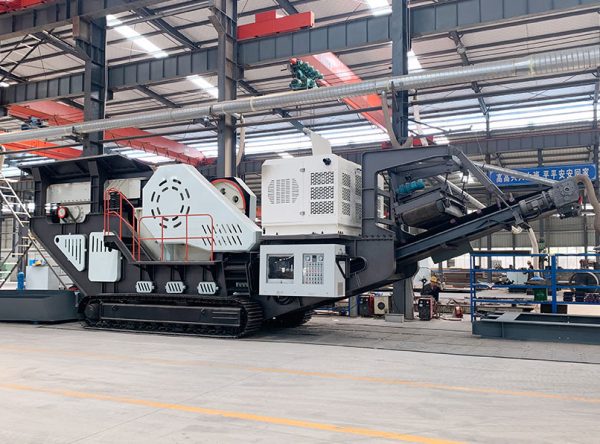

Crawler mobile crusher station is a kind of crushing equipment with high efficiency, energy saving and environmental protection. It adopts the hydraulic system driving crawler to run smoothly. The vibration feeder is for optimum pre-scaling and feed material evenly. The crusher could be optional for jaw crusher, impatct crusher, cone crusher, VSI crusher etc. The diesel-direct drive in combination with motor allows for a maximum performance at a small amount of space. Magnetic separator, discharge belt and water spray system are optionally available. Under any conditions, the crawler mobile station can reach working site directly with little assembly time. This reduces the processing and operation process of materials .The equipment can be put into use immediately after arriving at the user site.
| Model | YMC80 | YMC96 | YMC106 | YMC116 | YMC120 | |
| Feeder | Model | GZD8035 | GZD9638 | GZD1142 | GZD1142 | GZD1242 |
| Feeding Capacity | 60-120t/h | 100-200t/h | 200-300t/h | 200-300t/h | 300-400t/h | |
| Feeding Height | 2900mm | 3750mm | 3900mm | 3900mm | 3900mm | |
| Volume | 2.2m³ | 3.2m³ | 3.2m³ | 3.2m³ | 3.2m³ | |
| Power | 2×3.7Kw | 2×5.5Kw | 2×5.5Kw | 2×5.5Kw | 2×7.5Kw | |
| Jaw Crusher | Model | C80 | C96 | C106 | C116 | C120 |
| Power | 55Kw | 90Kw | 132Kw | 132Kw | 160Kw | |
| Discharge Adjustment | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | |
| Main Discharge Belt | Size(Width x Length) | 800×9000mm | 1000×12000mm | 1000×12000mm | 1200×13000mm | 1200×13000mm |
| Unloading Height | 2400mm | 2900mm | 2900mm | 3200mm | 3200mm | |
| Power | 7.5Kw | 11Kw | 11Kw | 15Kw | 15Kw | |
| Side Discharge Belt | Size(Width x Length) | 500×3800mm | 500×3800mm | 500×3800mm | 500×3800mm | 500×3800mm |
| Unloading Height | 1800mm | 1800mm | 1800mm | 1800mm | 1800mm | |
| Power | 3Kw | 3Kw | 3Kw | 3Kw | 3Kw | |
| Iron Remover | Model | RCYD800 | RCYD1000 | RCYD1000 | RCYD1200 | RCYD1200 |
| Generator | Primary Power | 163Kw | 225Kw | 310Kw | 310Kw | 403Kw |
| Standby Power | 180Kw | 250Kw | 345Kw | 345Kw | 448Kw | |
| Structure | 6-Cylinder Inline | 6-Cylinder V-shape | 6-Cylinder V-shape | 6-Cylinder V-shape | 8-Cylinder V-shape | |
| Generator | Primary Power | 150Kw | 200Kw | 280Kw | 280Kw | 360Kw |
| Standby Power | 165Kw | 220Kw | 300Kw | 300Kw | 390Kw | |
| Dual Power | Driving Concept | Diesel-electric Drive | Diesel-electric Drive | Diesel-electric Drive | Diesel-electric Drive | Diesel-electric Drive |
| Transport Parameters | Transport Length | 12500mm | 14500mm | 15000mm | 15000mm | 15500mm |
| Transport Width | 2850mm | 2950mm | 3000mm | 3200mm | 3200mm | |
| Transport Height | 3550mm | 3550mm | 3600mm | 3600mm | 3700mm | |
| Installed Power | 78.1Kw+70Kw | 121Kw+70Kw | 163Kw+90Kw | 168Kw+115Kw | 200Kw+115Kw | |
| Complete Dry Fog Dust Suppression | Optional | Optional | Optional | Optional | Optional | |
| Capacity | 80-125t/h | 100-250t/h | 160-360t/h | 200-450t/h | 300-520t/h | |
*The output will vary according to different materials, feed particle size and other factors
