1. With large crushing ration, heavy hammer crusher feeding granularity is large and discharge granularity is small. It could reduce the crushing stage and can save some equipment investment.
2. The heavy hammer crusher integrates coarse crushing and shaping functions when crushing stone. It does not need to go through the secondary crushing and shaping process.
3. With triple crushing force, the hammer head hits the material, the material hits the impact plate at high speed, and the stone rebounded by the impact plate hits the material hit by the hammer head. So PCZ hammer crusher can be more productive and energy-saving.
4. The heavy hammer crusher adopts a large blow bar to replace the hammer head of the original light hammer crusher. After optimized design, the kinetic energy is greater and the service life is longer.
Reduce the risk of clogging and adhesion with wet and much soil raw materials using no grate design.
High capacity and low energy consumption.
Lower investment and get profits quickly.
Simple structure and easy maintenance.

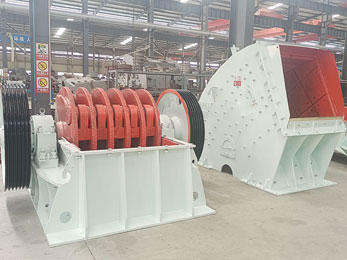

Motor drives the rotor quickly in the crushing cavity. When the materials get into the working area of hammers, the rotating hammers with high rotation speed are crushing them.
Without the grate design, wet and much soil raw material will not clogged. Finally, the finished porduct through the outlet smoothly.
| Model | Feeding Size (W*L)(mm) |
Rotor Size (Dia.xL)(mm) |
Input Size(mm) | Power(KW) | Capacity(t/h) | Overall Dimension (mm) |
| PCZ-0808 | 800*5000 | 850*790 | ≤450 | 55-75 | 50-90 | 1760*1700*1540 |
| PCZ-1308 | 850*800 | 1310*790 | ≤600 | 55*2 | 100-160 | 2818*2100*2390 |
| PCZ-1510 | 1000*850 | 1500*950 | ≤750 | 132*2 | 160-210 | 3260*2370*2750 |
| PCZ-1512 | 1210*900 | 1500*1160 | ≤750 | 160*2 | 220-350 | 3260*2580*2750 |
| PCZ-1615 | 1500X1200 | 1650*1452 | ≤1000 | 200*2 | 350-500 | 3456*2915*3185 |
| PCZ-2015 | 1500X1400 | 2000*1500 | ≤1200 | 315*2 | 500-800 | 3880*2990*3560 |
*The output will vary according to different materials, feed particle size and other factors
