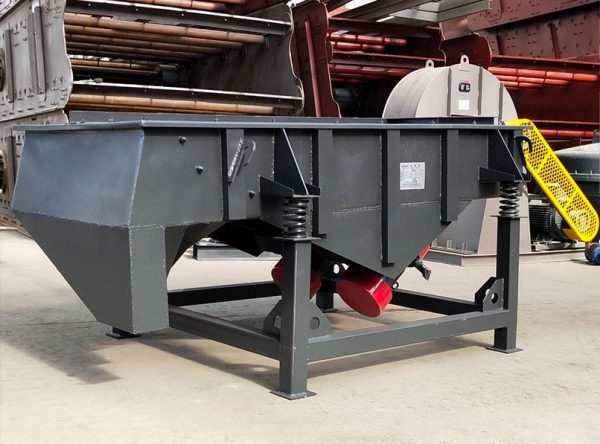

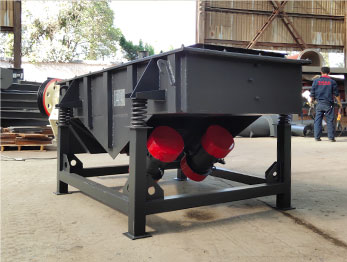

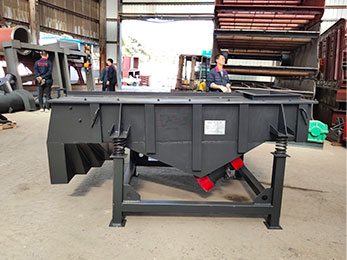

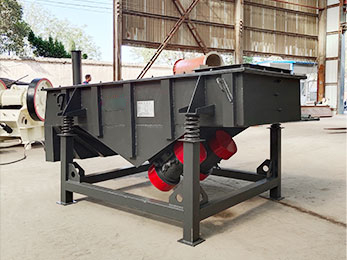

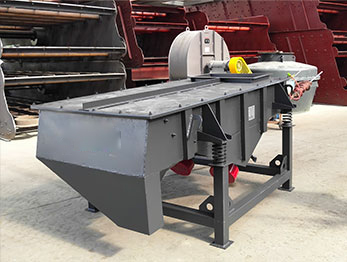

MGM linear vibrating screen is driven by double vibrating motor to separate different particle size clearly. It is a small or medium sized screen with internationally advanced level. Linear vibrating screen can be single layer or multi layer.
MGM linear vibrating screen is driven by double vibrating motor to separate different particle size clearly. It is a small or medium sized screen with internationally advanced level. Linear vibrating screen can be single layer or multi layer.
The motor should be fastened on the installation surface, and the installation surface must be smooth and flat.
Try to start the two vibration motors, and require the two vibration motors to run at the same speed in opposite directions. If it runs in the same direction, just replace the power wiring of one of the vibration motors.
In the early stage of operation, check the anchor bolts at least once a day to prevent loosening.
Regularly check whether the coarse mesh, fine mesh and spring are fatigued and damaged, and whether various parts of the fuselage are damaged due to vibration, and the parts that need to be lubricated must be lubricated.
It can be used for automatic production line due to fully enclosed structure.
Low energy consumption, low noise and long service life.
Tightness with little dust spilling. It can be enclosed or connected with duct collector.
Screening of high precision,screen up to 0.074mm.
The linear vibrating screen machine uses vibration motor as vibration source. Materials are put into the inlet of the screen machine by the feeder evenly. The sieved materials are jumped and moved in the straight movement at the same time.So the materials are separated to different sizes through the screen. Separated materials are discharged from different outlet.
| Model | Screen size(mm) | Particle size (mm) | Screen slope | Double amplitude(mm) (°) | Layer | Frequency(r/min) | Power(kw) |
| SZF-520 | 500X2000 | 0.074-60 | 1°-7° | 3-4.5 | 1-6 | 960 | 2x(0.37-0.75) |
| ZX-525 | 500X2500 | 2x(0.37-0.75) | |||||
| ZX-1020 | 1000X2000 | 2x(0.55-1.0) | |||||
| ZX-1025 | 1000X2500 | 2x(0.55-1.0) | |||||
| SZF-1225 | 1200×2500 | 2x(0.75-1.5) | |||||
| SZF-1230 | 1200×3000 | 2x(0.75-1.5) | |||||
| SZF-1235 | 1200×3500 | 2x(1.5-2.0) | |||||
| SZF-1530 | 1500×3000 | 2x(2.0-2.2) | |||||
| SZF-1535 | 1500×3500 | 2x(2.0-2.2) |
*The output will vary according to different materials, feed particle size and other factors
