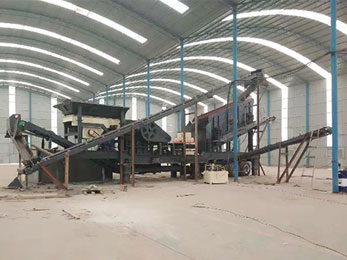

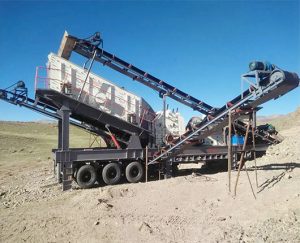

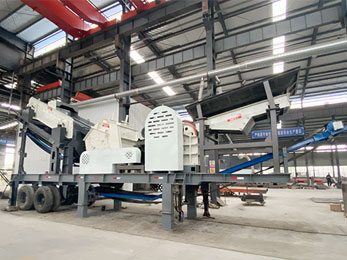

Mobile Crush and Screen Plant
Mobile Crushing and Screening machine is high-efficiency and modular stone crusher plant. It can work by single machine, as well as combination of several machines to be a plant. It is widely used to limestone, granite, quartz, gold ore etc.
- Feed Size: <750mm
- Motor Power: 120-500kw
- Processing capacity: 50-300 t/h
Mobile Crushing and Screening machine is high-efficiency and modular stone crusher plant. It can work by single machine, as well as combination of several machines to be a plant. It is widely used to limestone, granite, quartz, gold ore etc.
- Feed Size: <750mm
- Motor Power: 120-500kw
- Processing capacity: 50-300 t/h
What is mobile stone crushing and screening plant?
Product features
Reasonable bearing structure and fast installation.
-
High Quality
Primary and secondary crushing and screening machines are combined onto one carbody.
-
Customized Design
Flexible configuration. Various models can quickly combine with other models to meet the different needs of production.
-
Good Performance
Saving transportation cost of raw material.
Working principle
Mobile crushing plant is a kind of wheel type mobile stone crusher plant. It combines vibrating feeder, jaw crusher, cone / impact crusher, vibrating screen on one truck body to crush and screen gravels automatically. This four-in-one crushing plant is reasonable circular crushing system to crush stone in higher efficiency. When mobile stone crusher plant works, material by the feeder goes evenly to the jaw crusher. After primary crushing by jaw crusher, stone goes to vibrating screen by main belt conveyor. During screening, the first layer unqualified material goes into secondary crusher to break. The qualified material from other screen layers are discharged to finished material area. The output from secondary crusher is discharged to main belt conveyor for further screening too. Thus, the material is in the circulation system of crushing-screening-crushing. The finished material could meet the final demand greatly.
Specification
Technical Data//Model | MF1010E46 | MB900E57 |
Transportation size (mm) | 14700x2400x4150 | 17000x2500x4300 |
Weight(t) | 40 | 45 |
Vibrating feeder | ZSW8530 | ZSW8530 |
Crusher 1 | PE400x600 | PE500x750 |
Crusher2 | PF1010 | PYB900 |
Vibrating screen | 3YK1548 | 3YK1860 |
Belt conveyer above screen | B500x8m | B500x8m |
Belt conveyer under screen | B500x8m | B500x8m |
Main belt conveyer | B650x11m | B650x11m |
Side belt conveyer | B500x16m | B500x16m |
Electric control (standard) | control box + control panel | control box + control panel |
Support leg (standard) | 6 | 6 |
*The output will vary according to different materials, feed particle size and other factors
