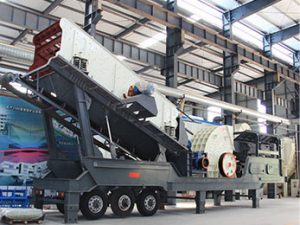

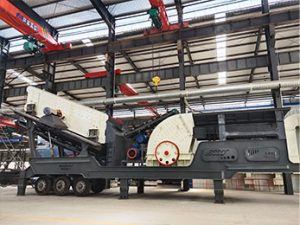

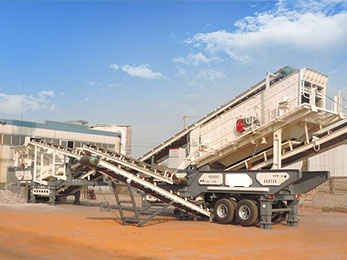

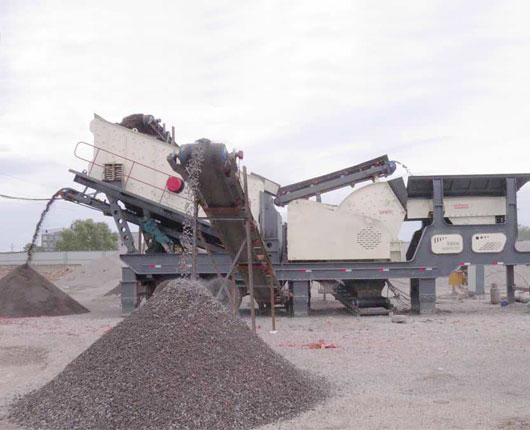

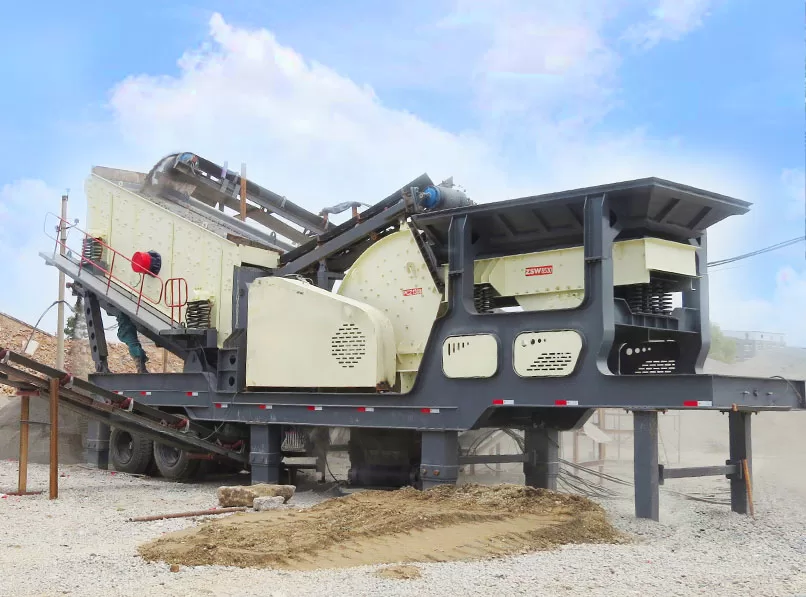

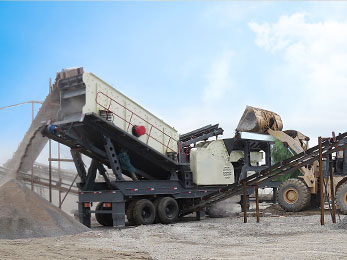

Mobile heavy hammer crusher is used to crush large stone into gravels and sand due to large crushing ratio. It could crush and screen large reinforced concrete in concrete recycling industry.
Mobile heavy hammer crusher is used to crush large stone into gravels and sand due to large crushing ratio. It could crush and screen large reinforced concrete in concrete recycling industry.
According to material properties. That is the key factor affecting production efficiency and capacity. Therefore, before purchasing the mobile heavy hammer crusher plant, the user must have a detailed understanding of the humidity, hardness, physical and chemical properties of the materials to be crushed.
According to finished granularity requirement. Because each user has different requirements for product particle size, the selection of equipment model will also be affected by it.
Since the prices of each type of mobile stone crusher are different, users must consider their own production conditions when purchasing a mobile crusher, and strive to obtain large returns with a small investment.
The size of the finished product is even and in good shape, which meets the national standards.
The whole line is highly automatic. Feeding, crushing and screening machines are all-in-one carbody.
High crushing ratio. The heavy hammer crusher could crush large size stone into small granules.
Low operation cost. It needs only several workers to work on this plant.
The mobile construction waste crushing plant includes vibrating feeder, stone crusher, vibrating screen, belt conveyor, magnetic separator etc. When construction waste is fed to vibrating feeder by the loader, they are crushed by heavy hammer crusher. The crusher materials will go to vibrating screen by foldable belt conveyor. After screen, the unqualified stone will go to crush again, the other qualified aggregates will be piled for further processing, such as removing iron, separating wood chips, cleaning etc.
| Item | M3S1848PCZ1308 | M3S1860 PCZ1510 | M3S1860 PCZ1512 |
| Transportation Length(mm) | 14000 | 16000 | 16000 |
| Transportation Width(mm) | 3100 | 3100 | 3100 |
| Transportation Height(mm) | 4300 | 4500 | 4500 |
| Maximum Length(mm) | 14000 | 16400 | 16400 |
| Maximum Width(mm) | 3400 | 3400 | 3400 |
| Maximum Height(mm) | 4700 | 4700 | 4700 |
| Weight(ton) | 34.5 | 49.5 | 41 |
| Tire Configuration | Dual-axial | Dual-axial | Tri-axial |
| Crusher | PCZ1308 | PCZ1510 | PCZ1512 |
| Belt Converyor under Vibrating Screen | B800×7M | B800×8M | B800×8M |
| Vibrating Screen | 3YZS1848 | 3YZS1860 | 3YZS1860 |
*The output will vary according to different materials, feed particle size and other factors
