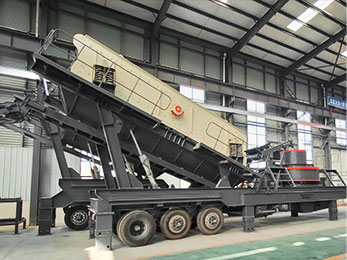

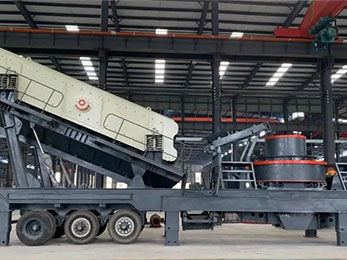

Mobile VSI Sand Making Plant

Mobile Sand making machine is portable type VSI crusher and screening plant. It is indispensable machine for artificial sand making. Mobile sand making plant is ideal for tertiary crushing and screening applications in quarrying and mining.

  • Feed Size: ≤40mm
  • Motor Power: 147-350 kw
  • Processing capacity: 50-350 t/h

Mobile Sand making machine is portable type VSI crusher and screening plant. It is indispensable machine for artificial sand making. Mobile sand making plant is ideal for tertiary crushing and screening applications in quarrying and mining.

  • Feed Size: ≤40mm
  • Motor Power: 147-350 kw
  • Processing capacity: 50-350 t/h

What is mobile VSI sand making machine?

Mobile sand making machine is a kind of mobile vehicle-mounted VSI sand making machine. Compared with the traditional fixed sand making machine, the mobile sand making machine can replace a production line with a single “four in one” to carry out operations. It integrates the four functions of feeding, screening, sand making and transportation into one. It can also be combined with other mobile sand and gravel equipment by mobile feeding, mobile crusher and mobile vibrating screen, and multiple units are connected into mobile sand making production line, which not only produces higher output, but also can be applied to kinds of stone to sand making process.

Why choose mobile VSI sand making machine?

The material is pre-selected by the feeder, sand is produced by the VSI sand making machine, and a closed-circuit system is formed through the vibrating screen to realize the circular crushing of the material, which can effectively save the sand making process. The finished material is conveyed by the conveyor output for continuous crushing operations.

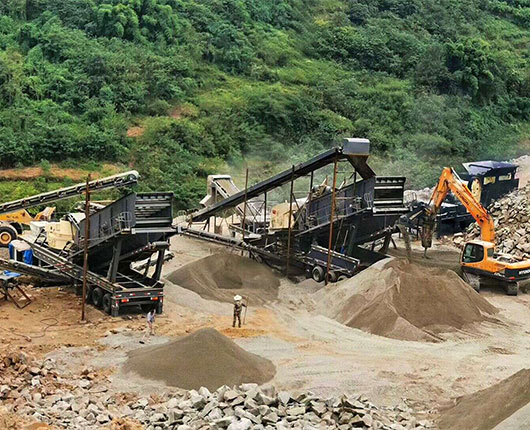

Applicable materials: artificial sand made from river pebbles, mountain stones (limestone, granite, basalt, diabase, andesite, etc.), ore tailings and stone chips.

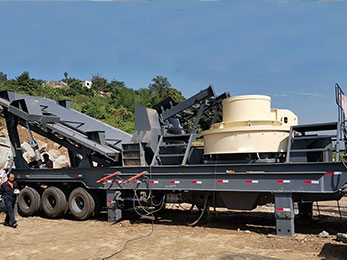

All components of the mobile sand making machine are mounted on the vehicle, which can not only eliminate the complicated installation of the site infrastructure of separate components, reduce the consumption of materials and working hours, but also greatly improve the flexibility of equipment transfer.

Product features

Automatic lubrication system.

  • High Quality

    Powerful crushing performance.

  • Customized Design

    Flexible configuration and great adaptability.

  • Good Performance

    Strong, durable, reliable, large loading capacity

Working principle

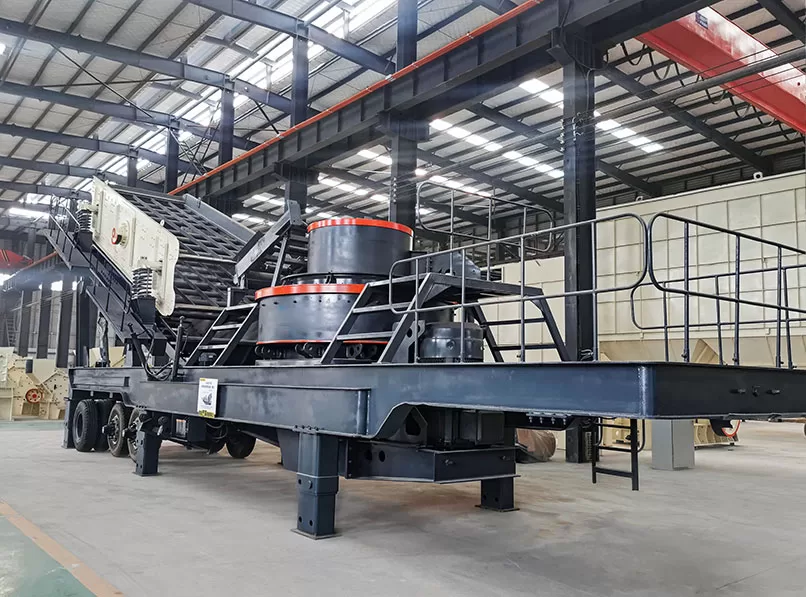

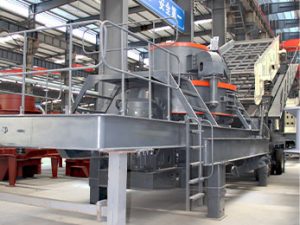

Mobile sand maker is including hopper, VSI sand maker, vibrating screen , and conveyor belt, truck mounted frame foundation. The power can be electricity or diesel generator set, it reducing the cumbersome process of infrastructure installation and labor consumption, and truly provide customers with convenient, efficient, low-cost crushing equipment. When mobile VIS crushing plant works, the raw material falls through upper inlet into rotating impeller. Due to centrifugal force, the material will collide with surrounding ones and break. The final product will come out from underneath outlet. The screen will control size of final material.

Specification

Model PP5000VSI PP5000VSI3S PP6000VSI PP6000VSI2S PP7000VSI PP7000VSIS
Transport size
Length(mm) 9800 11280 11500 15470 1100 15420
Width(mm) 2490 2780
Height(mm) 4200 2500 3850 4180 3820 4150
Alex weight(kg) 14600 19200 14000 22300 15000 21100
King pin weight(kg) 7000 8800 6000 10300 8200 11500
Vertical shaft impact crusher
Model VI-5000 VI-5000 VI-6000 VI-6000 VI-7000 VI-7000
Max input size(mm) 65(80) 65(80) 70(100)
through-put capacity(t/h) 80-150 80-150 120-250 120-250 180-350 180-350
Vibrating screen
Model 3YK1545 2YK1860 YK2160
Belt conveyor
Model B650X6.5m B800X7.2m B800X6.7m B1000X8.6m B1000X6.4m B1000X8.6m
Alex number 1 2 2 2 2 2

*The output will vary according to different materials, feed particle size and other factors
