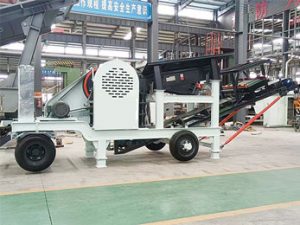

Portable Stone Crusher

Portable stone crusher is a kind of movable stone crushing equipment to crush large stone into smaller size. It could be driven by electric motor or diesel engine types.

  • Feed Size : <350mm
  • Motor Power: 5-30kw
  • Processing capacity: 1-60tph

Portable stone crusher is a kind of movable stone crushing equipment to crush large stone into smaller size. It could be driven by electric motor or diesel engine types.

  • Feed Size : <350mm
  • Motor Power: 5-30kw
  • Processing capacity: 1-60tph

What is portable stone crusher?

Portable stone crushing plant is composed of stone crusher, vibrating feeder, discharging device and simple movable frame. The stone crusher could be jaw crusher, hammer mill crusher etc. The application of tires makes the machine more convenient to move and adapt to various application, especially when your place lack of electricity or you need to move machines frequently. Portable stone crusher is widely used to process pebble, basalt, granite, limestone, quartz, construction waste, concrete, gold ore, iron ore, coal and other stone, ore and other minerals.

How to choose portable stone crusher?

1. According to the material characteristics, output requirements, feeding and discharging particle size, to select the appropriate portable stone crusher machine, including portable jaw crusher, protable hammer crusher, mobile impact crusher, etc.

Small mobile jaw crusher generally refers to the mobile crusher with hourly production below 100t. According to the loading method, you can choose whether a vibrating feeder is needed. According to the discharging method, you can choose direct discharging, or conveying materials by belt conveyor, or as finished material after classify through the screen.

3. As a professional mining machinery manufacturer, we continues to introduce advanced production technology and research and innovation. The small mobile crushing plant can be combined with various types of crushing equipment. Users could customize appropriate crushing plant based on actual production needs to help later production.

Product features

Small size, small footprint, easy installation, smal investment and fast effect.

  • High Quality

    Flexible configuration, stand-alone operations, but also multi equipment operation.

  • Customized Design

    Vehicle mounted motor and control box integration to make your job more convenient.

  • Good Performance

    Modular and intelligent operation design makes one person can operate, work more stable, the overall output is increased.

Working principle

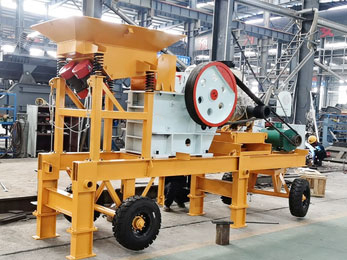

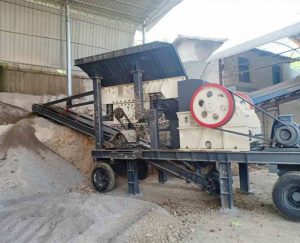

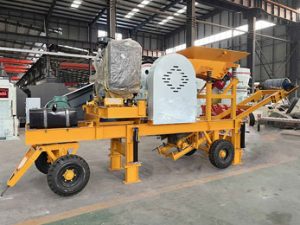

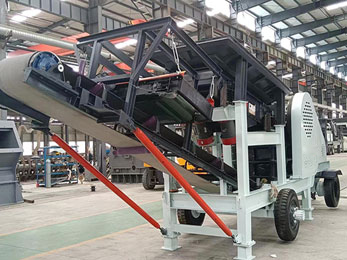

Portable stone crusher is generally composed of small vibrating feeder, jaw crusher, vibrating screen, belt conveyor, power device, movable  frame with wheels and so on. After loading from the loader to vibrating feeder, the material enters  jaw crusher at a uniform speed for crushing. According to the different types of stone crusher model and user’s requirement, the crushed materials can be as finished products and directly transported to the designated place by the belt conveyor , or flow into the small screen machine to get different specifications of aggregate. Its power plant can be motor type, diesel type or use a small generator set.

Specification

Model BDP250-GZ40 BDP400-ZSW650
Vibrating feeder Model GZ40-4 ZSW6520
Feed spout size(mm) 400X1000 650X2500
Max feeding size(mm) 350 560
Motor(kw) 2X0.25 2X1.1
Jaw crusher Model PE250X400 PE400X600
Feeder Opening Size(mm) 250X400 400X600
Max feeding size(mm) 210 350
Outlet adjusting Size(mm) 25-60 40-90
Motor(kw) 15 30
Capacity(t/h) 10-20 30-60
Belt conveyor Model B500x6 B500x8
Width(mm) 500 500
Length(mm) 6000 8000
Motor(kw) 4 4
Power system Electrical Control or Generator Set according to Jobsite
Chasis 2 bridge + hand-operated jack system

*The output will vary according to different materials, feed particle size and other factors
