VSI, the high efficient Vertical Shaft Impact Crusher is a kind of sand making machine, sand maker. It can provide the best sand material for the highway,railway,construction project and concrete mixing station etc.
VSI, the high efficient Vertical Shaft Impact Crusher is a kind of sand making machine, sand maker. It can provide the best sand material for the highway,railway,construction project and concrete mixing station etc.
Actual production needs: different series of construction sand making machines produced by our company have different stone feed granularity, finished sand and stone discharge granularity and capacity. Users can choose appropriate series and models according to actual production needs when choosing construction sand making machines.

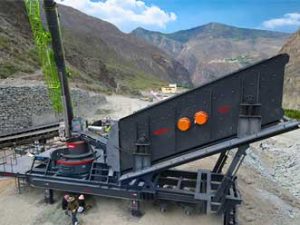

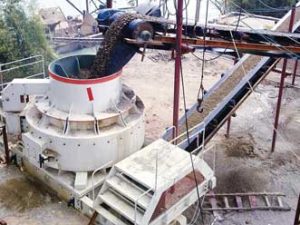

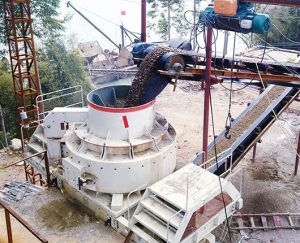

Production site: Make reasonable planning according to production site. Stationary sand making machine or mobile type sand making plant is selected to achieve the requirements of rationalization of the production process and saving production costs.
Consult professional manufacturers: If you do not have a clear understanding of your own production needs or process planning, you can click on the online consultation, our company will have professionals for you to customize sand production process and recommend right sand making equipment.
Automatic test, safe and reliable;Vibration display and warning device are set. The machine will be warned to stop working when abnormal phenomenon appears.

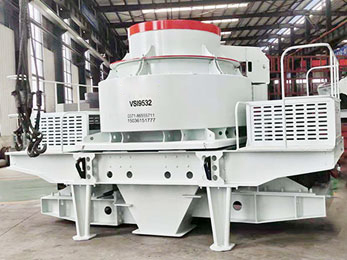

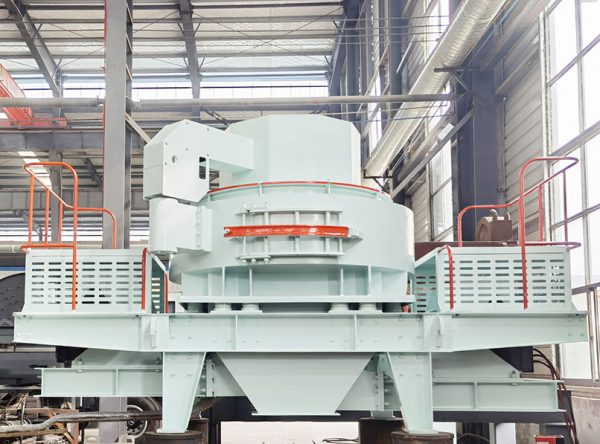

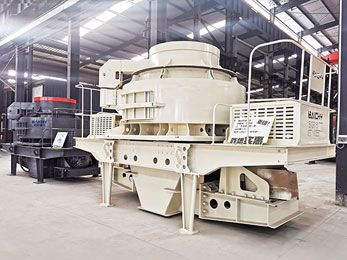

VSI Sand Crusher Machine with Large handling capacity and High output.
Low wearing parts cost; Perfect impact angle design of the crushing cavity, less friction against the wearing parts.
Thinning oil lubricant and automatic maintenance. The thinning oil lubricant station,double-pump injection system guarantees the oil supply.
How does VSI Sand Crusher Machine works? Hard stone materials fall into the crusher and are divided into two parts. One part goes into the high-speed-running impeller of the machine, and the other part goes around the impeller.The two parts materials bump and crush fast during the effect of centrifugal force. Then the materials run like swirl, bump and rub to each other again and again. The finished products go out from the bottom of the machine, and users can get the requested products size after screening by vibrating screen. Baichy VSI sand maker adopts central feeding and central cascade feeding way, which can be changed based on customers’ needs.
| Model | VSI-7611 | VSI-8518 | VSI-9526 | VSI-1140 | VSI-1145 | |
| Capacity (t/h) | Cascade and Center Feeding | 120-180 | 200-260 | 300-360 | 450-520 | 490-600 |
| Center Feeding | 60-90 | 100-130 | 150-190 | 225-260 | 250-310 | |
| Feeding Size (mm) | Soft Material | < 35 | < 40 | < 45 | < 50 | < 50 |
| Hard Material | < 30 | < 35 | < 40 | < 45 | < 45 | |
| Rotation Speed (r/min) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | 1180-1280 | |
| Power of the Double Motors (kw) | 110-150 | 180-220 | 264-320 | 400-440 | 440-520 | |
| Overall dimension L*W*H (mm) | 3700*2150*2100 | 4140*2280*2425 | 4560*2447*2278 | 5000*2700*3300 | 5100*2790*3320 | |
| Power Source | 380v:50hz | |||||
| Vibrating Sensor | Inspection Scope:0.1-20mm/s, it can be adjusted continuously. | |||||
| Hydraulic Lubrication Station | Power of Double Oil Pump | 2×0.31kw | ||||
| Safety | Double oil pumps make sure supply of oil with; Stop automatically without oil flow or oil pressure; Water cooled; Heating start the motor in winter. | |||||
| Overall Dimension L*W*H (mm) | 820x520x1270 | |||||
| Power of Oil-Box Heater | 2kw | |||||
*The output will vary according to different materials, feed particle size and other factors
