High Recovery Rate Gold Ore 6-S Shaking Table For Sale is one of the important dressing equipment depending on the gravity.
High Recovery Rate Gold Ore 6-S Shaking Table For Sale is one of the important dressing equipment depending on the gravity.

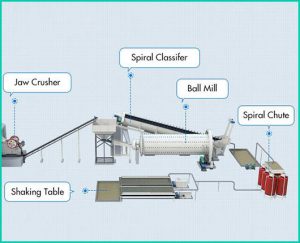

1. Gravity separation is one of the commonly used methods for gold ore beneficiation. It uses different specific gravity of materials and different sedimentation speed in the medium to carry out layered separation. Generally, in placer gold ore, gold is mostly in the form of natural gold. When it exists, the density difference between it and the gangue is relatively large, and it is effective and economical to use for gravity separation of gold.
2. Shaking table gold separation is suitable for processing minerals with finer particle size. According to the particle size of the ore, it can be divided into three types: coarse sand bed, fine sand bed and ore mud bed. Among them, the coarse sand bed is suitable for separating material particle size For ore particles as small as 0.5 mm, the fine sand bed is suitable for processing ore particles with a particle size range of 0.5 to 0.074 mm, and the ore mud bed is suitable for processing ore particles with a particle size of 0.074 to 0.037 mm.

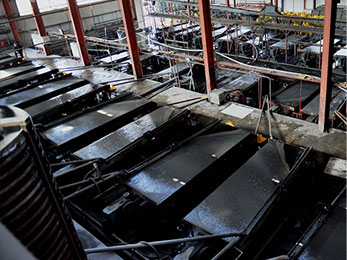

3. The gold separation effect of the shaking table is stable. It is suitable for processing fine-grained minerals, and it is very suitable for the beneficiation stage of gold mines.
Strong resistance to harsh environment.
Great ratio of high-grade ore, high separating efficiency, easy to operate and convenient to adjust the stroke.
Anti-chemical corrosion, acid and alkali.
Strong wear resistance of the working surface.

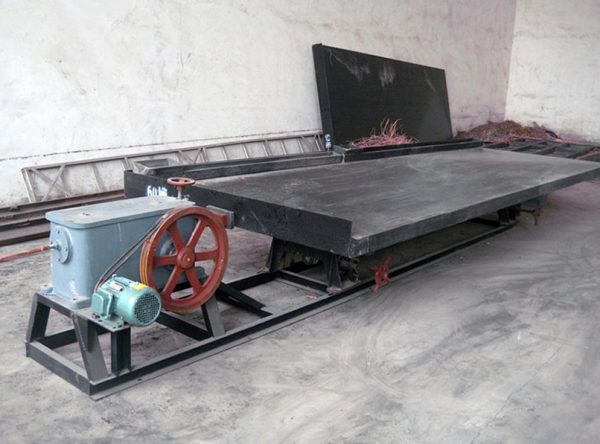

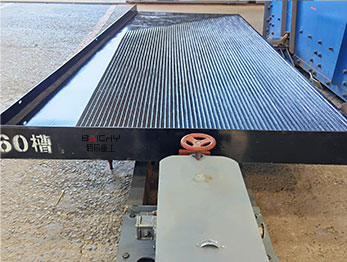

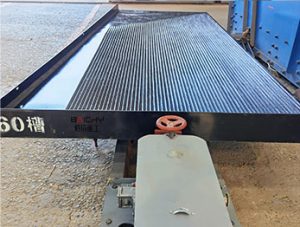

The bed zone of shaking table is near a rectangle shape, slightly inclined to the tailing end. There are craved chute on the surface of bed, the water flow along the incline direction from water tank and feeding chute. The bed surface do repeatedly motion by transmission mechanism, the distance of bed forward and backward called stroke, when the slurry enters into feeding chute, under the action of water flow and shaking, different density of mineral particles will be distributed in fanshape on the bed surface.
| Name | bed surface for coarse sand | bed surface for fine sand | bed surface for slurry | |
| Bed | Length(mm) | 4450 | 4450 | 4450 |
| dimension | transmission end width(mm) | 1855 | 1855 | 1855 |
| concentrate ore width(mm) | 1546 | 1546 | 1546 | |
| Max Feeding Size(mm) | 2 | 0.5 | 0.15 | |
| Feeding volume(t/h) | 30-60 | 10-20 | 15-25 | |
| Feeding density(%) | 25-30 | 20-25 | 15-25 | |
| stroke(mm) | 16-22 | 11-16 | 8-16 | |
| Frequency( t/s) | 45-48 | 48-53 | 50-57 | |
| Cross Slope of Surface | 2.5°-4.5° | 1.5°-3.5° | 1°-2° | |
| mineral dressing area(㎡) | 7.6 | 7.6 | 7.6 | |
| Shape of bed surface | Rectangle | indention | Triangle | |
| Motor Power(KW) | 1.1 | 1.1 | 1.1 | |
| Driving type | Eccentric link structure | |||
| Remarks: Any change of technical parameters, there is no further notice. | ||||
*The output will vary according to different materials, feed particle size and other factors
