Spiral sand washing machine is used to remove the dust and stone powder in the sand produced by sand making machine, it also can do sand-selecting work or the similar process.
Spiral sand washing machine is used to remove the dust and stone powder in the sand produced by sand making machine, it also can do sand-selecting work or the similar process.
Spiral sand washer is especially suitable for the washing, grading and impurity removal of medium, fine-grained and coarse-grained materials.
It can effectively clean the sand and gravel with serious mud impurities with a strong cleaning ability

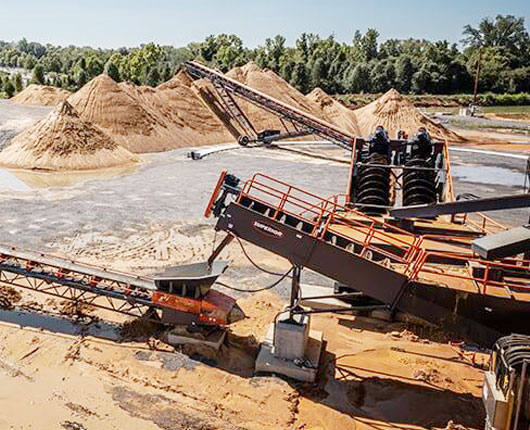

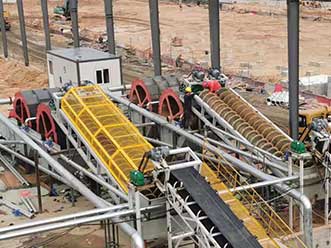

It often used in large scale sand production lines due to great washing ability.

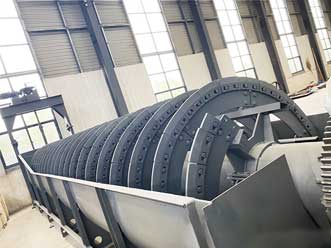

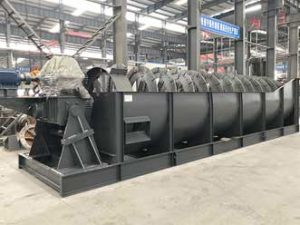

Spiral washing machine is mainly composed of washing tank, speed reducer, motor, main shaft, screw blade and lifter support. The structure is simple and has few parts.
Spiral sand washer can process materials within 0-30mm and can wash the soil and ash powder on the material into clean materials.
The spiral blades are made of wear-resistant materials, which ensure working continuity and reduce the running cost.
Special sealing structure and adjustable overflow weir plate ensure sand washer more durable, with good cleaning and dewatering effects.
When the spiral sand washing machine works, the constant sharp motor drives the impeller to rotate slowly after the gear slows down through the triangle belt, the reducer and the gear decelerates. The sand and stone feed groove enters the washing tank, rolls under the drive of the impeller, and grinds each other to remove the impurities covered with sand and stone, and at the same time destroy the water vapor layer covered with sand particles in order to facilitate dehydration. At the same time, add water to form a strong flow, take away impurities and small dust.
| Model | Spirals Qty (pcs) |
Screw Diameter (mm) |
Feeding size (mm) |
Capacity (t/h) |
Power (kw) |
Water Consumption (t/h) |
| LX762 | 1 | 762 | <10 | 20-60 | 11 | 9-63 |
| LX915 | 1 | 915 | <10 | 30-100 | 15 | 10-80 |
| 2-LX915 | 2 | 915 | <10 | 60-200 | 15*2 | 20-160 |
| LX1115 | 1 | 1115 | <10 | 40-120 | 22 | 20-150 |
| 2-LX1115 | 2 | 1115 | <10 | 80-240 | 22*2 | 40-300 |
*The output will vary according to different materials, feed particle size and other factors
