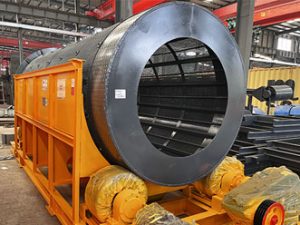

Trommel screen machine is also called rotary drum screen. It provides a simple, efficient and economical solution to sceen a wide rang of material. Trommel screen is applied in metallurgy, mining, chemical, coal, building materials and other industries.
Trommel screen machine is also called rotary drum screen. It provides a simple, efficient and economical solution to sceen a wide rang of material. Trommel screen is applied in metallurgy, mining, chemical, coal, building materials and other industries.
1. Trommel screen adopts the overall through-shaft structure, which runs smoothly, does not vibrate, and has low noise.
2. The trommel screen has simple structural design, good screening effect, and the screen hole is not easy to block.
3. The screening cylinder can be closed, which is easy to seal and collect dust.
4. MGM can manufacture trommel screens with shaft, shaftless, mobile, integrated screening and conveying, etc. At the same time, different screen materials and screen hole sizes can be used according to requirements.
Variable application range. Compost,chemical,coal,plastic,recycling,metallurgy,mineral screening etc.
Screen long life span. Screen seive is made with strong strength, good abrasion resistance and high screening efficiency.
Designed to fit your operation.Trommel screen can be customized to meet different capacity and working site.
Free from pollution.Fully enclosed structure,no dust pollution,improve working conditions for operators as well.

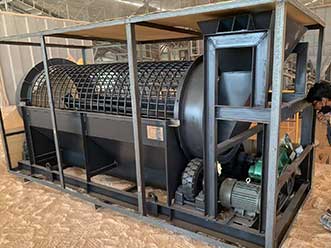

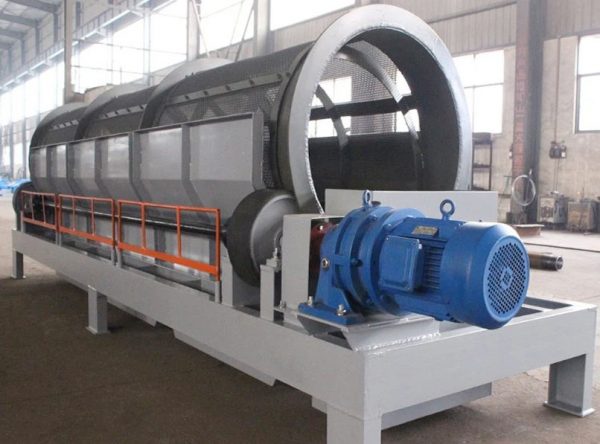

Trommel screen is consisting of five parts: drum, frame, hopper, reducer and motor.
After the material goes into the drum, it is screened along with the rotation of drum. At same time, the larger size materials flow forward along the direction of slope and be separated by the screen with different numbers of meshes. The different materials fall into different hoppers and then are sent to different finished product stacks by manpower or belt conveyor.
| Model | Screen Diameter(mm) | Screen Length(mm) | Mesh size(mm) | Max feeding size(mm) | Capacity(t/h) | Power(kw) |
| GTS0618 | 600 | 1800 | 2-80 | <300 | 0.5-2 | 1.1 |
| GTS0824 | 800 | 2400 | 2-80 | <300 | 2-20 | 2.2 |
| GTS1030 | 1000 | 3000 | 2-80 | <300 | 20-100 | 4 |
| GTS1236 | 1200 | 3600 | 2-80 | <300 | 30-120 | 7.5 |
| GTS1545 | 1500 | 4500 | 2-80 | <300 | 60-280 | 11 |
| GTS1860 | 1800 | 6000 | 2-80 | <300 | 80-350 | 22 |
*The output will vary according to different materials, feed particle size and other factors
